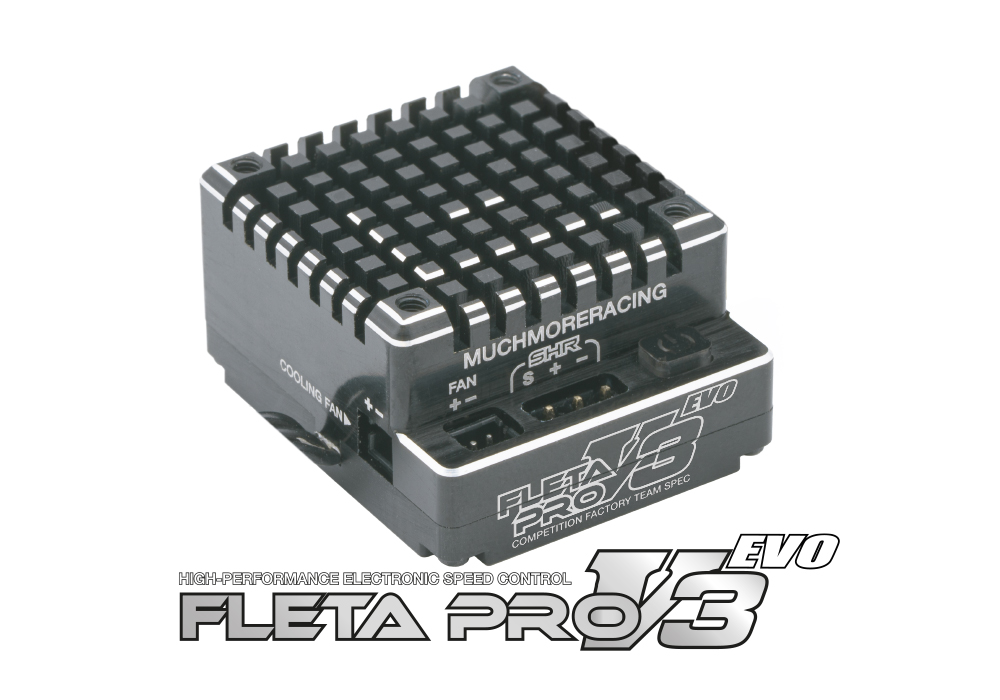

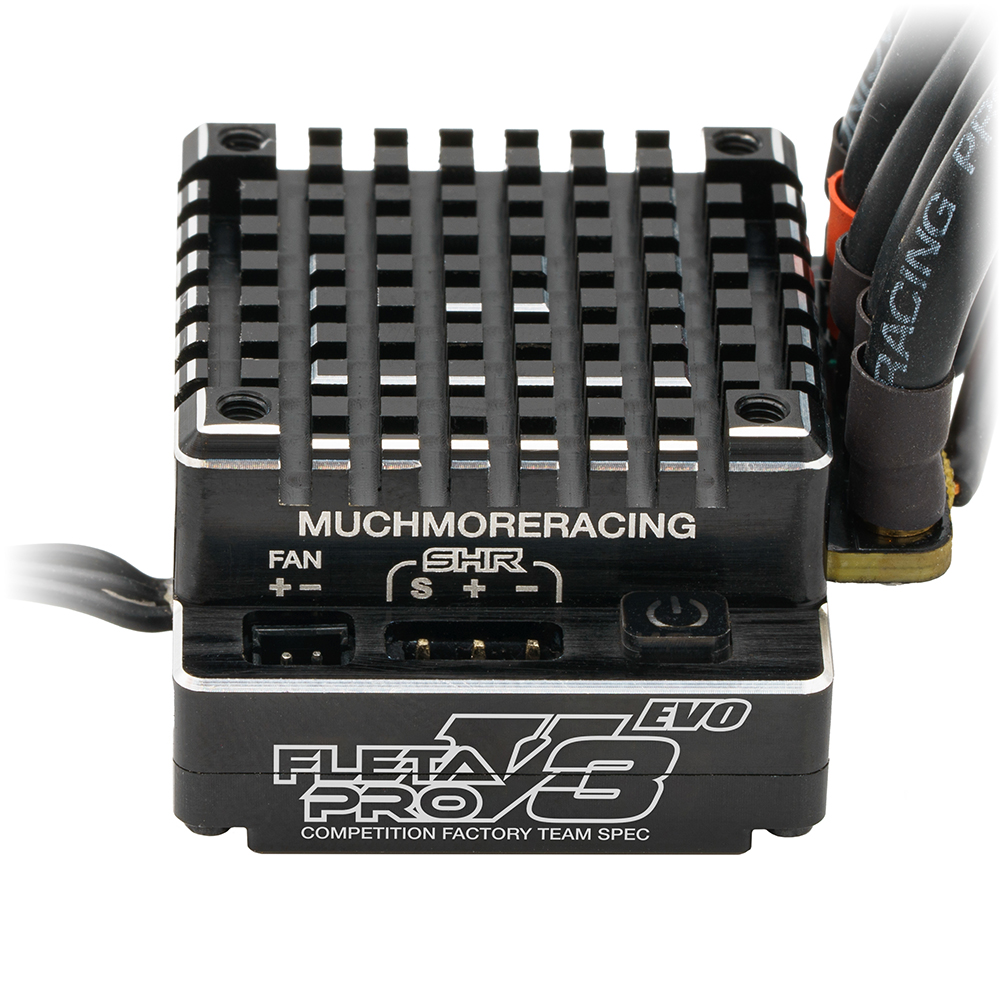

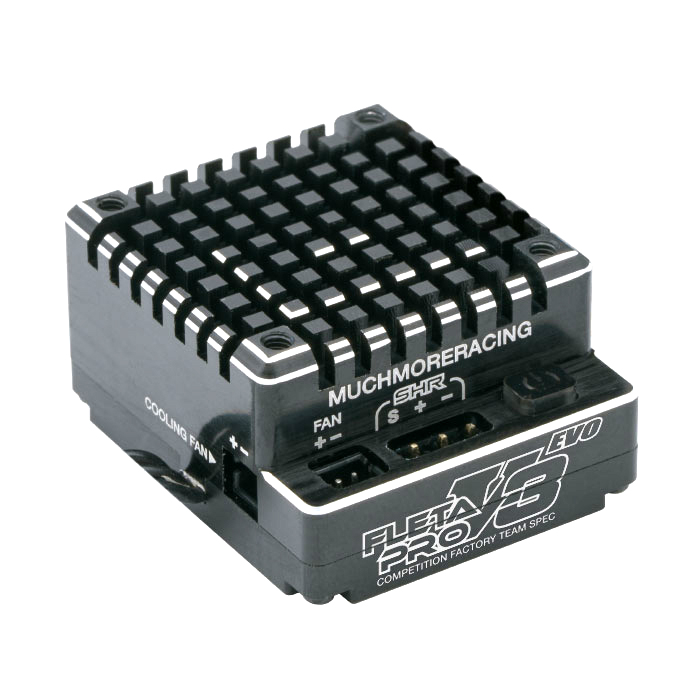

●  ME-FLPKV3EV    FLETA PRO V3 Evolution Brushless ESC Black


THE NEW FLETA PRO V3 EVOLUTION ESC is coming.


The new FLETA PRO V3 EVO is specifically designed for 1/10 scale electric R/C racing.
No matter what level of competition you are in, FLETA will help you achieve better results.
It has been upgraded to better performance and released again compared to the previous FLETA PRO V3.
New FLOW-MAX3™ Cooling design

The FLOW-MAX3™ air hole design with excellent cooling effect was used as it was,
and maximum cooling was considered through various tests.
It creates the best motor condition and maximum cooling
Internal Switch System

FLETA PRO V3 EVO has an internal switch for simplicity of wiring.

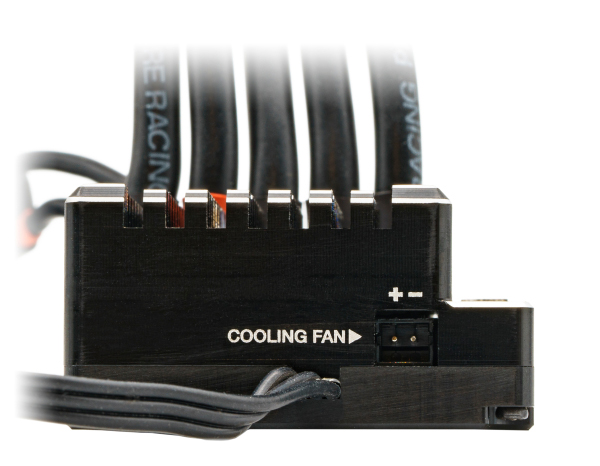

DIRECT MOTOR & ESC COOLING FAN POWER

Battery power directly supply to the cooling fan,
be able to do more high RPM cooling to ESC, Motor.
ESC separtate motor cooling fan port, no needs soldering for the motor cooling fan wire

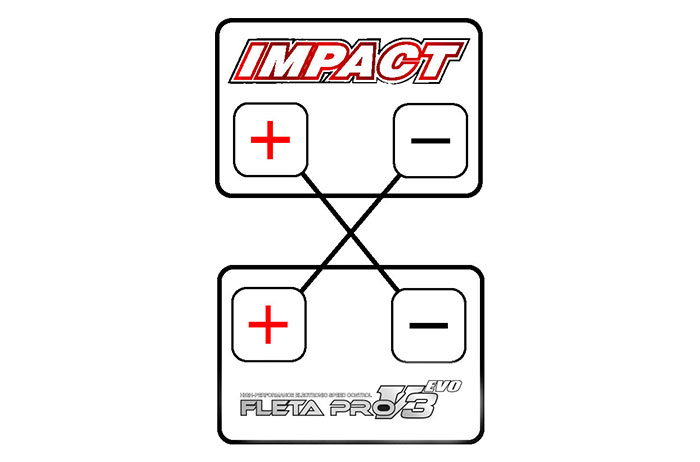

  REVERSE POLARITY PROTECTED

FLETA PRO V3 is reverse polarity protected
It is protected even if the user reverses the polarity. (Standard capacitors are damaged if polarity is reversed.)
Use non-polar capacitors to  avoid capacitor damage.
- OPTIONAL PART -
MR-SCMM Super Capacitor Module for Max Power Ver. [Non Polarity]
MR-SCMS Super Capacitor Module for Linear Power Ver. [Non Polarity]

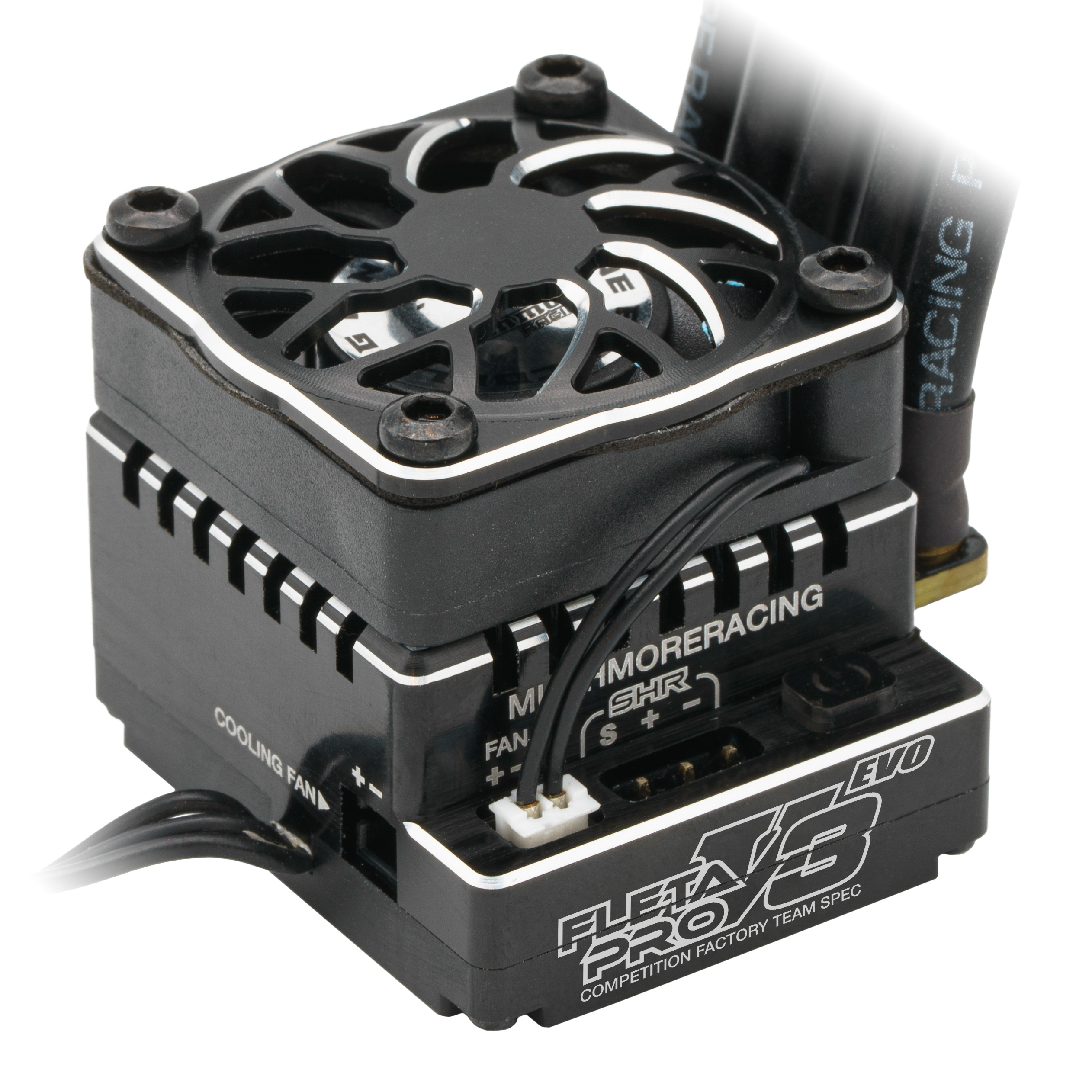

ULTRA HIGH RPM COOLING FAN &
FULL GUARD COOLING FAN COVER

New ultra high RPM cooling fan designed
standard cooling increases the ESC
effciency and performance signicantly
Full guard protect cooling fan under any circums-tances


MORE UPGRADED

The new High-Spec FET
High Temperature Solder
Super High-Current BEC
180A Current Continous Power
1400A Burst Power
Programable BEC (Up to 10A)
.
.
.





- Specifications -
Current Continuous 180A / Peak 1,400A Input 2S LiPo / 6 cells NiMh/NiCd
BEC 6V/7.4V Program setup switchable Max 10A Suitable Motor 3.5T over
KV Rating/T Count 1~2S LiPo/4~6S NiMH: (On-Road) T≥3.5T, (Buggy) T≥4.5T. Size 30.5mm(L) x 36.5mm(W) x 18.6mm(H)
Weight 44.5g Cooling Fan Powered by Battery Output Voltage
