| - Product Detail View - |
|
[ Hybrid Touch AC/DC Balance Charger & Discharger Improved information ]
Enhanced cell voltage balancing system
Improved durability input power terminal
New orange backlight with super visibility
Antistatic feature circuit board design

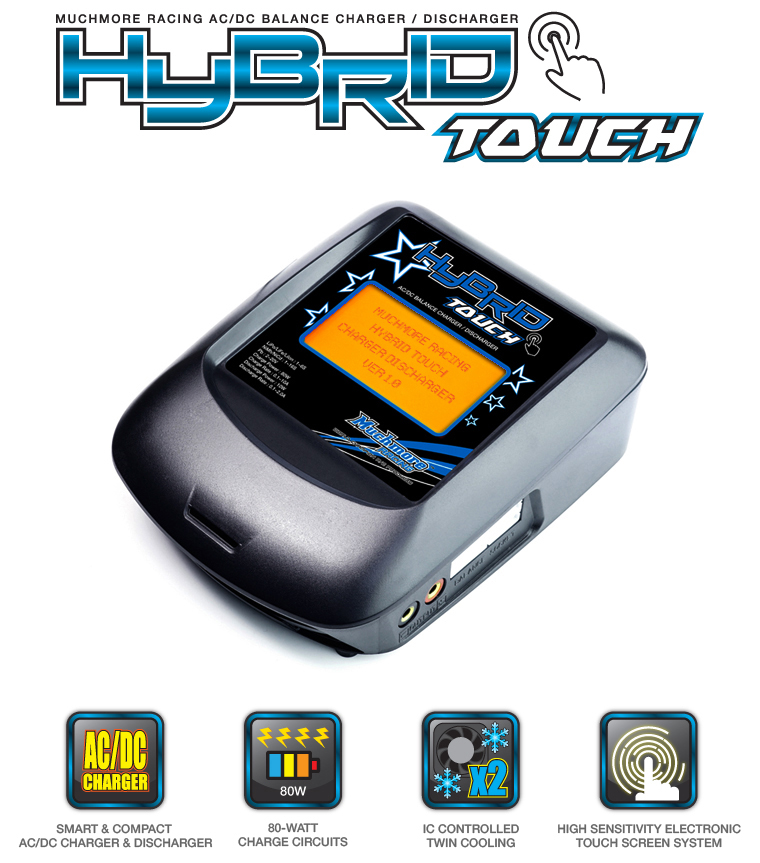

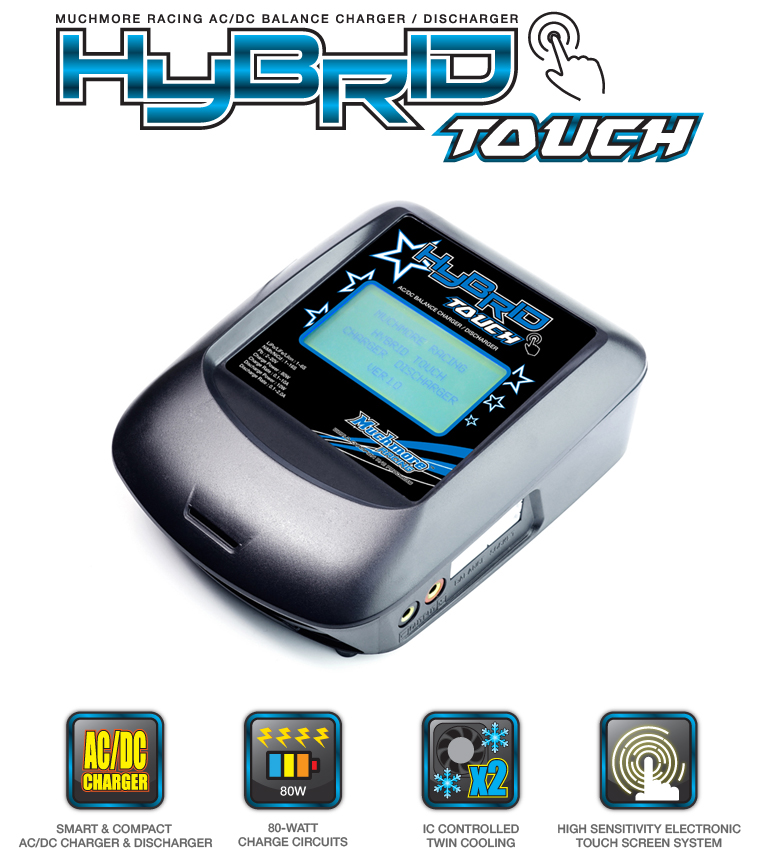

● SMART COMPACT AC/DC CHARGER & DISCHARGER
Muchmore Racing's HYBRID TOUCH Charger is compact size, super Light Weight design and equipped with smart features.
Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.10 setup value memorize function.
Antistatic feature circuit board design

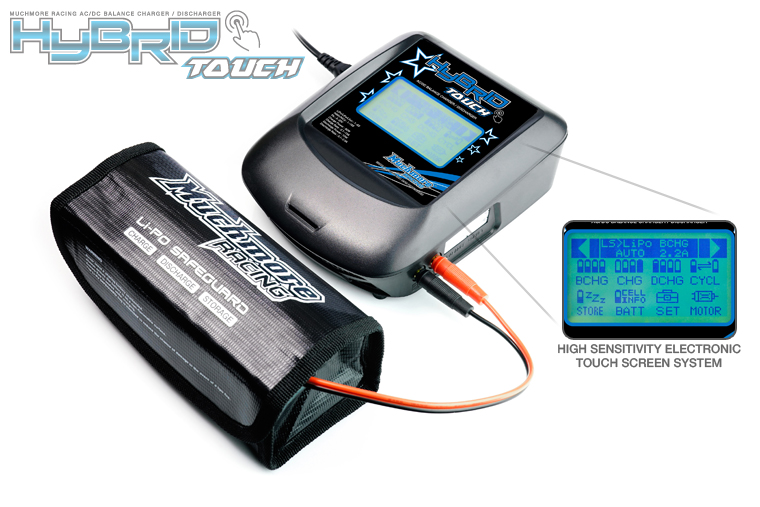

● HIGH SENSITIVITY ELECTRONIC TOUCH SCREEN SYSTEM
New designed touch screen with white color back light. It can be accessed instantly each menus with intuitive function. Compact hybrid touch charger equipped smart features. Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.
New orange backlight with super visibility

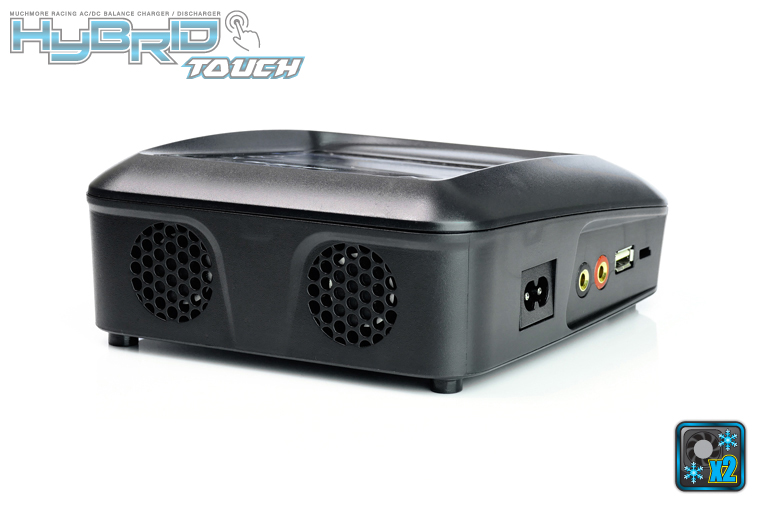

● IC TEMPERATURE TWIN COOLING FAN
IC controlled twin cooling fans protect from high temperature of device.
● EUROPEAN STYLE OUTPUT PORT & BALANCE PORTS
HYBRID TOUCH Charger built Li-Fe or LiPo 2 ~ 6S cell XH2.5 balancing ports all in one, no need a separate balancing board.
Enhanced cell voltage balancing system
● AC/DC INPUT / TEMP SENSOR PORT
Hybrid Touch charger attached built-in DC power supply. You can use input AC100~240V or DC 12~15V.
If you use input AC100~240V, it can be use connect DC input port other RC equipment Max 4A add.
If you use optional part - temperature sensor, you can check the battery temperature.
Improved durability input power terminal

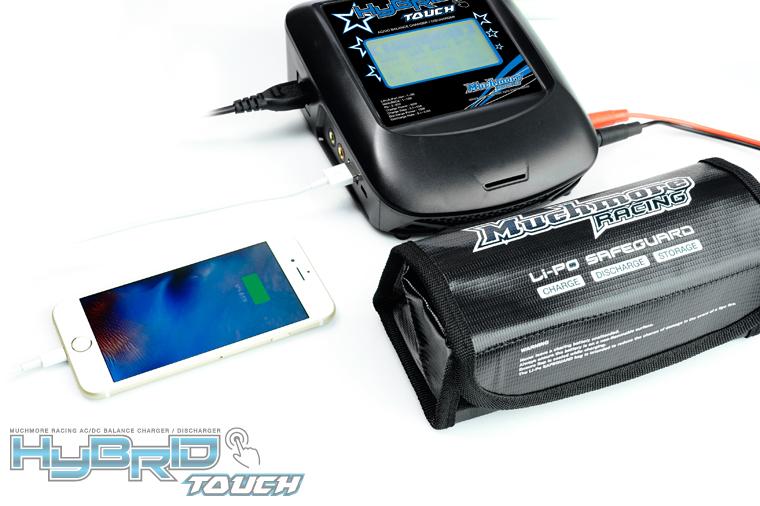

● USB CHARING PORT
USB port and 5V / 2.1A output, you can charge your smartphone and other devices.

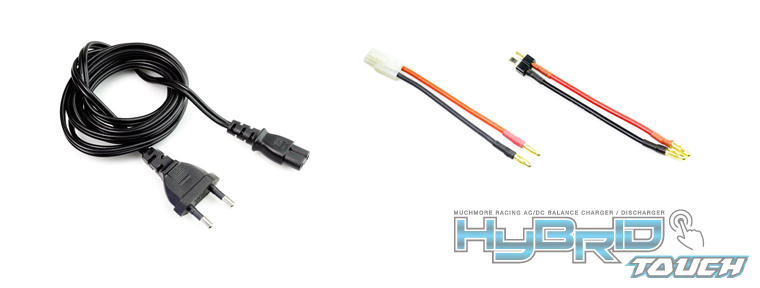

● Including Connectors
AC INPUT WIRE : 1pc
TAMIYA Charging Lead (100mm) : 1pc
Ultra 2P Connector Charging Lead (100mm) : 1pc
| Input Voltage |
DC 11~18V / AC 100~240V |
Charge Current |
0.1~10.0A |
| Discharge Current |
0.1~2.0A |
Charge Power |
MAX 80W |
| Discharge Power |
MAX 10W |
Balance Current |
MAX 450mA |
| Balance Tolerance |
±0.01V |
Charging Capability (NiMh/NiCd) |
1~16 cells |
| Charging Capability (LiPo/LiFe/Lilon) |
1~6cells |
Pb Battery Voltage |
2~20V |
| USB Port |
5V / 2.1A |
Weight |
605g |
| Size |
180x145x57mm |
|
|
Options Parts
MR-S2BCL Special 2S Balance Charging Lead
MR-DATC Cell master Double accel Temp sensor
|
|
