● PT-SIC   SILENT CHARGER PLATINUM

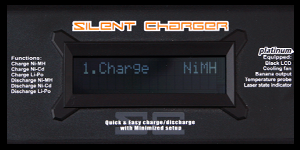

Special Black LCD

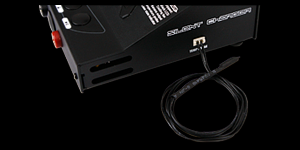

    Magnetic Temp probe

● Specifications
Dimensions··············································124x114x47mm
Weight······················································520g
Number of cells (Ni-MH / Ni-Cd)····················1~14cells (12~16.8V)
Number of cells (Li-Po)································1~6cells (3.7 / 7.4 / 11.1 / 14.8 / 18.5V / 22.2V)
Max charge current······································0.1~6A
Max discharge current··································0.1~6A
Discharge cutoff voltage ·······························Automatically selected
Input voltage ··············································9~15V
Charging mode ··········································Ni-MH, Ni-Cd, Li-Po
Discharging mode ······································Ni-MH, Ni-Cd, Li-Po
Trickle charge rate (after charge) ····················0.1A (Ni-Cd mode)
Voltage threshold / Delta peak ·······················3mV / cell (Ni-MH), 6mV / cell (Ni-Cd)
Max charge watts ········································120watts
Max discharge watts ····································40watts
Temperature probe ·····································Magnetic sensor (35~65deg.C)
Key ···························································4
Cooling ·····················································IC controlled single fan

The Silent Charger Platinum(referred to as the SC)is a state of the art microprocessor based charger/discharger system for rechargeable batteries for R/C use. With the technology developed by our team of R&D, factory team drivers and world champions, Muchmore introduces the next generation of charger for all R/C drivers. The SC is switching type and can fully charge Ni-MH and Ni-Cd 1 to 14 cells at a digitally presettable amperage up to a maximum 6.0amps using peak detection and temperature limit methods. The SC can charge Litheum battery up to 5 cells.

The following features give the SC superior benefits to the other chargers: BLACK BACKGROUND LCD with 16x2 characters USER SELECTABLE 3STEP DELTA PEAK SENSITIVITY(Low-Medium-High)

An IC controlled cooling fan
Multi protection system
3-3 charge discharge memories
Minimized setup procedure
Automatic saved charge-discharge profile
Capability of charging high voltage batteries by new switching type charge
Temperature probe(Thermo sensor)

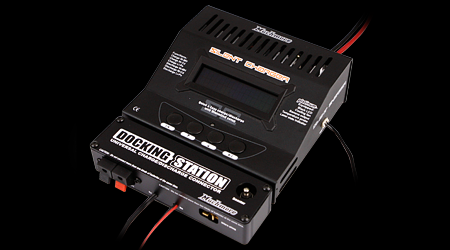

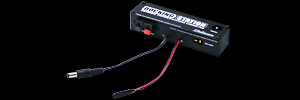

● MR-SDS     Docking Station for Silent Charger

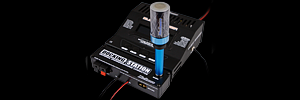

Docking Station equips Universal connectors/Booster/Receiver/Transmitter/Deans style connector. (Wire length: 50cm long)

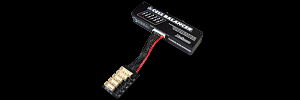

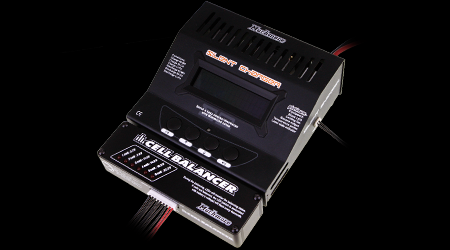

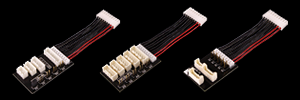

● MR-SBL    Much More Cell Balancer (2-6Cell) comes with AL type adaptor
Available with Silent charger series and other Li-po chargers.
