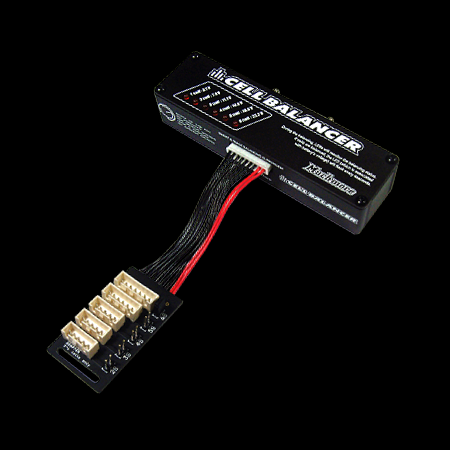

● MR-SBL Much More Cell Balancer (2-6Cell) <include adapter AL Type>

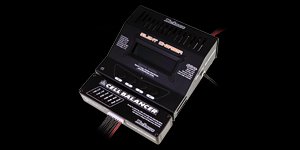

Combination with Silent charger for charging of LiPo battery.
Equipped with AL type Balancing connector.
For use with Cell balancer adapter it is possible to charge different brand battery.

● Specs
 Size  125x47x28mm  Weight  101ｇ(Include multi adapter)
 Compatible Input Devices  LLiPo chargers and dischargers ONLY(operation based on nominal cell voltage of 3.7V per cell)
 Cell balancing range  2-series to 6-series LiPo packs(7.4 - 22.2V)
 Max.current(charge/dis)  6Amps
 Discharge termination  individual cell voltages 2.90V per cell
 Discharge current  140mA per cell (Auto-Balance Mode)



■ LiPo cell balancer, designed to regulate the voltage of all cells during charge and discharge functions.
Balanced LiPo's provide higher total voltage than non-balanced battery.
Good balancing system provides a very safe charging and discharging platform,
designed to balance LiPo packs and will keep the voltages of all cells in the pack within 20mV (0.02v) of each other at all times.
Available with a number of adapter cables for use with majority of packs.

■ Type of Blance connector

Type Brands
AL Align, 3E Models, Air Thunder, Common Sense,
Dyna Power, Dualsky, E-flight, Electric Power, Electrifly, Energy EC, Esky, Fully Max, Grayson Power,
Hextronix, HI Model, Hurricane Flight Systems, Imax,
Kong Power, Kong Thunder, LOSI, Mega Power, Tenergy, Turborix, Venom, WOW RC
PQ PolyQuest, E-tec, Hyperion, Impulse, MaxAmps,
Pache, Poly RC, True RC, Xcite
TP Thunder Power, Apex, Danlions, EVO,
Flight Power, MPX, Tark Power, Vislero
2S  Reedy, ChekPoint,Orion,Speed Pssoion

*Please check the LiPo battery polarity before use.

■ Recommended Products

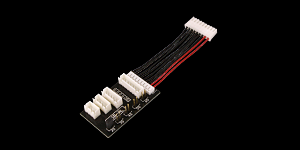

  MSB-AL
  MSB-PQ
  MSB-TP
  MSB-2S
  セル・バランサー用コネクター変換ボード ALタイプ
  セル・バランサー用コネクター変換ボード PQタイプ
  セル・バランサー用コネクター変換ボード TPタイプ
  セル・バランサー用　2セルリポアダプタ
