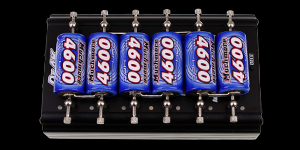

5 to 6 cell battery is equalizing without input voltage
+ - Position can be fixed regardless. check only battery bar match the printed image.
As you can see discharge status on LED lamp.
●スペック
Size
149x94x52mm
Input voltage
DC 10～14V
Weight
454g
Discharge current
0～9990ｍAh
Cell type (Ni-MH, Ni-Cd)
SUB-C 1～6cell(1.2～7.2V)
Mode
Equalizing, Conditioning
Max. discharge current
6A
Case
Aluminum
Cut off
0.9V(Equalizing),
Key
1button
Adjustable(Conditioning)
Fan
30x30mm single fan
● Features

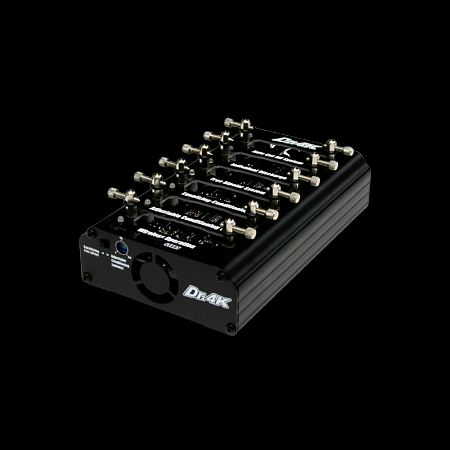

■ The Dr.4K is a state of the art digital discharger system for Sub-C size rechargeable batteries for R/C use. With technology developed by our team of R&D, Dr.4K is free from the insertion direction or polarity of battery packs by new Free bi-polar system technology. The Dr.4K can discharge 1~6cells or packs
1.Auto cut off system
2.Individual discharge
3.Free bipolar system

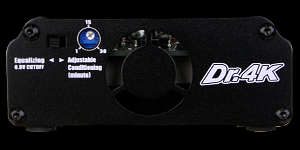

4.Equalizing-Conditioning
5.Adjustable conditioning time
6.Wireless operation
