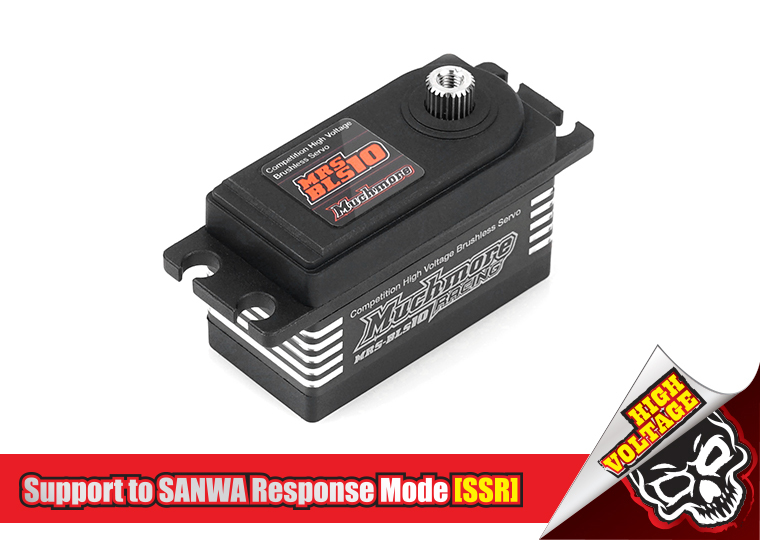

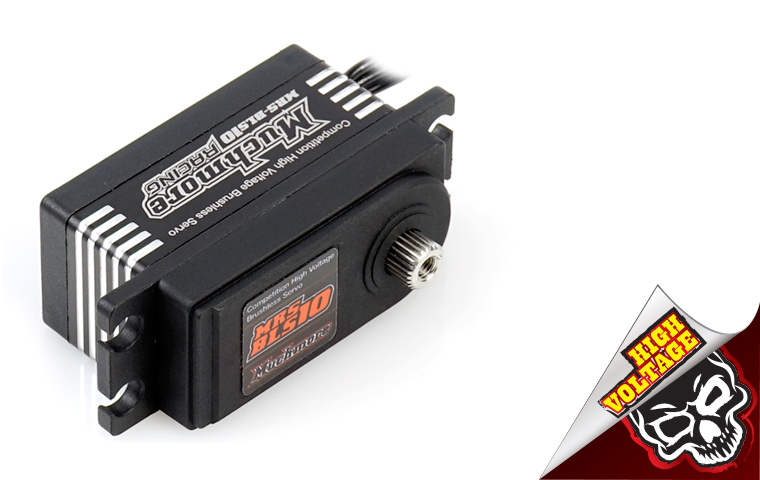

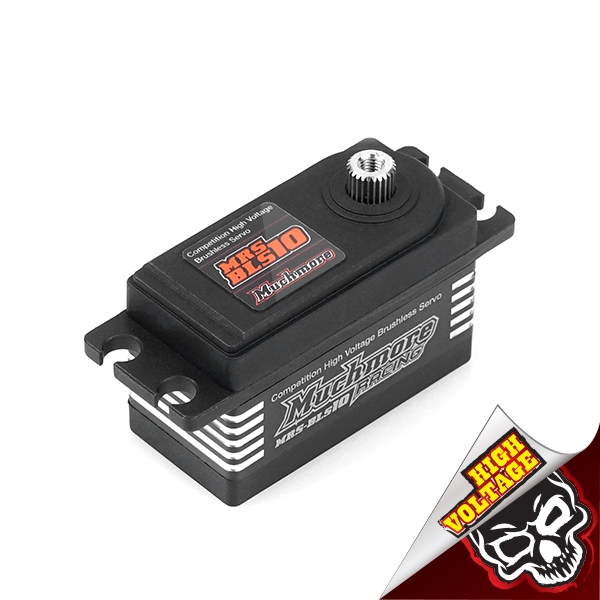

Muchmore Racing's BLS10 Servo is High Voltage Brushless Servo.
Support to SANWA Response Mode [SSR]
Aluminium heatsink mid case is more cooling of servo.

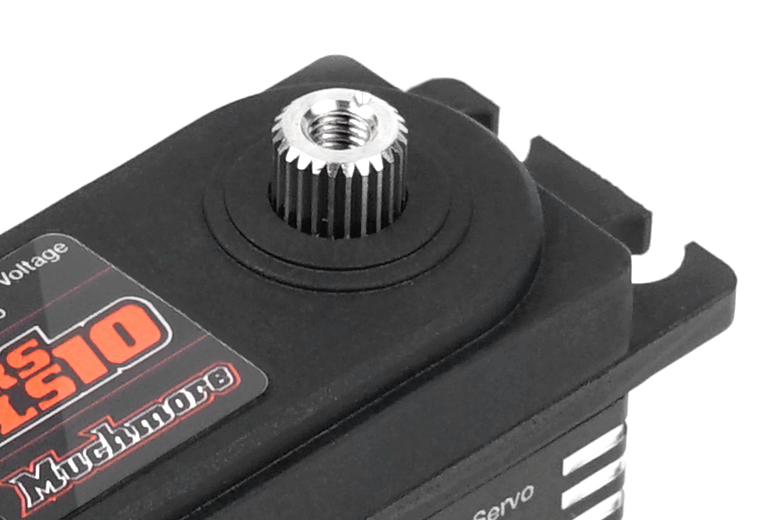

Output Shaft 25T (Futaba)
| 7.4V Input |
0.055sec / 13.5kg-cm |
6.0V Input |
0.065sec / 10.5kg-cm |
| Size |
41.0 x 20.0 x 26.4 mm |
Weight |
47.5g |
| Wire length |
13mm |
Operating Voltage |
6.0 ~ 8.4V DC |
| Gear Type |
Titanium & Alu |
Bearing Type |
Ball Bearing x 2ea |
| Motor Type |
Brushless Motor |
Perating Temperature |
-20℃ ~ 60℃ |
| Output Shaft |
25T (Futaba) |
|
|
