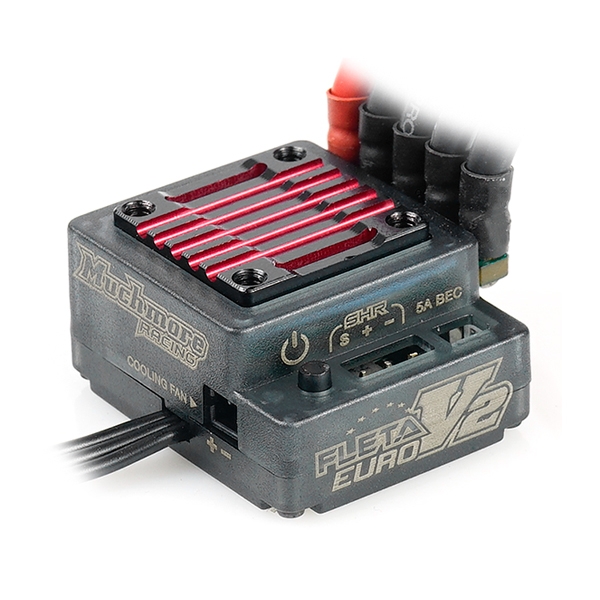

●  ME-FLEV2H    FLETA Euro V2 Brushless ESC [High Current BEC Ver.]
- Product Detail View -















Firmware Update Link
- Specifications -
Current Continuous Continuous 80A / Peak 380A Input 2S LiPo, 2S LiFe, 5-7 cell NiMh/NiCd
BEC Output Switch Mode 6V/7.4V @5A Suppoerted Motor Type 540 size 2 pole brushless with sensor type
Suitable Motor Over 9.5T Size 26.5 x 32.7 x 17mm
Weight 21.5g (without Wire, Capacitor and Cooling fan)
- Features -
FLOW-MAX2™ OPTIMIZED COOLING DESIGN
FLOW-MAX2™ Air hole designed maximum cooling through various tests.

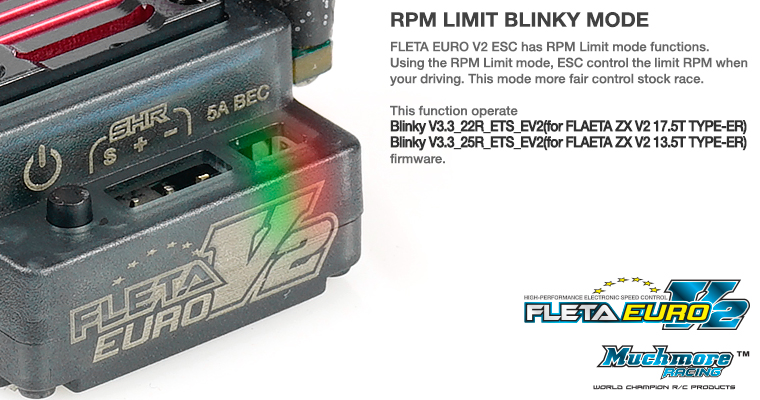

RPM LIMIT BLINKY MODE
FLETA EURO V2 ESC has RPM Limit mode functions.
Using the RPM Limit mode, ESC control the limit RPM when your driving. This mode more fair control stock race.
FLETA EURO V2 is the black translucent case, so you can easily check the mode.

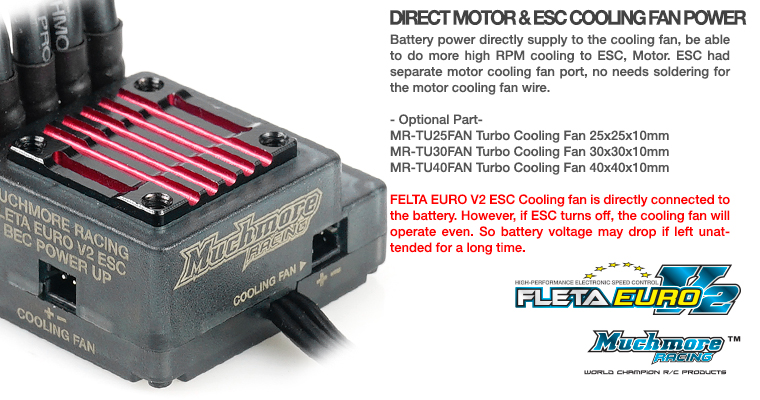

DIRECT MOTOR & ESC COOLING FAN POWER
Battery power directly supply to the cooling fan, be able to do more high RPM cooling to ESC, Motor. ESC had separate motor cooling fan port, no needs soldering for the motor cooling fan wire.

- Optional Part-
MR-TU25FAN Turbo Cooling Fan 25x25x10mm
MR-TU30FAN Turbo Cooling Fan 30x30x10mm
MR-TU40FAN Turbo Cooling Fan 40x40x10mm

FELTA EURO V2 ESC Cooling fan is directly connected to the battery. However, if ESC turns off, the cooling fan will operate even. So battery voltage may drop if left unattended for a long time.

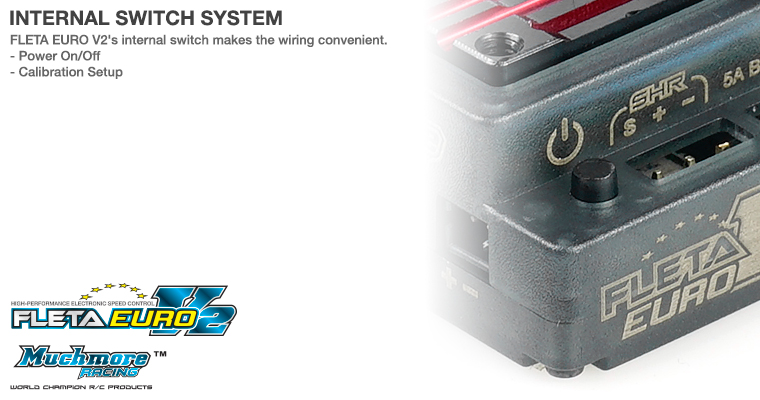

INTERNAL SWITCH SYSTEM
FLETA EURO V2's internal switch makes the wiring convenient.
- Power On/Off
- Calibration Setup


Normal Blinky mode: Green Fast Flashing
RPM Limit Blinky mode: (ESC Firmware FLETA EURO V2 V3.1)
22000RPM Limit / Green Flashing 5 times and Red flash 1 time
25000RPM Limit / Green Flashing 2 times and Red flash 1 time

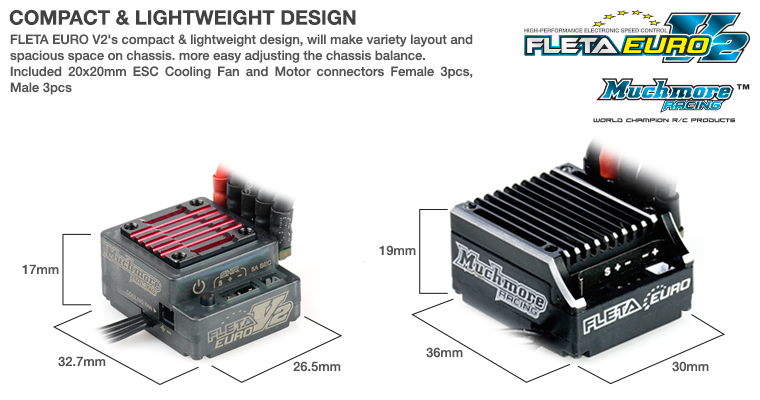

COMPACT & LIGHTWEIGHT DESIGN
FLETA EURO V2's compact & lightweight design, will make variety layout and spacious space on chassis. more easy adjusting the chassis balance.
Included 20x20mm ESC Cooling Fan and Motor connectors Female 3pcs, Male 3pcs
