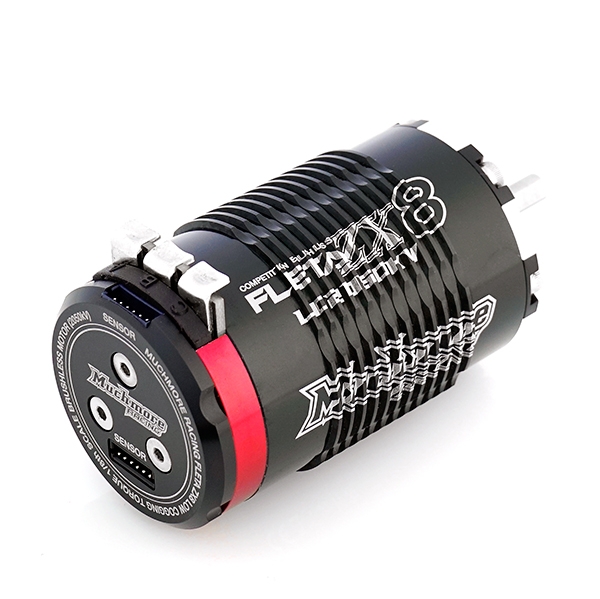

●  MR-LC2050FZX8    FLETA ZX8 Low Cogging Torque 1/8th Scale Brushless Motor (2050kV)
- Product Detail View -
FLOW-MAX™ ALUMINUM COOLING BODY

FLOW-MAX Air hole is designed after various tests. Make the best motor condition, maximum cooling.

HIGH RPM SUPER LOW-FRICTION BEARING

Their special construction with a Super Low-Friction steel inner shield on the side maximum protection against the elements while
optimising the drive train efficiency compared to all-metal shielded ball races.




 ADJUSTABLE TIMING SYSTEM

Open the end bell, you can change to motor timing.
Motor timing range is -10 ~ +10deg.



DUAL-PLUG SENSOR CONNECTOR HOLES

FLETA ZX 8 Motor is dual-plug sensor connector holes.
You can change the sensor position according to car layout.


INCLUDED FLEXIBLE SENSOR CABLE

Super Flexible Sensor Cable for each motor category.
Connect strongly and bent naturally.
All black color design.

4-POLE-8 MAGNET "STAGGERED POLE" ROTOR

New FLETA ZX8 Low Cogging Torque Version 2050KV motor adopted the innovative 4-poe-8 magnet "stagged pole" rotor
Can easy driving and will reduce the ESC`s damage.
Specifications
Shaft Diameter 5mm Shaft Length 18mm
Length 69mm Diameter 42.5mm
Features
FLOW-MAX aluminum cooling body
Adjustable timing system
DUAL-PLUG sensor connector holes
High RPM super low friction ball bearing

New FLETA ZX8 Low Cogging Torque Version 2050KV motor adopted the innovative 4-pole-8magnet "stagged pole" rotor.
Can easy driving and will reduce the ESC`s damage.
